phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 3360

Posted: 10:45pm 09 Aug 2026

Copy link to clipboard

Print this post

Quote it appears that OPTION SYSTEM SPI cannot be set on HDMIUSB builds

I think this has been mentioned in the past and the verdict was OPTION SYSTEM SPI is only available on LCD versions.

Quote Display Panels
NOT AVAILABLE ON HDMI OR VGA VERSIONS
...

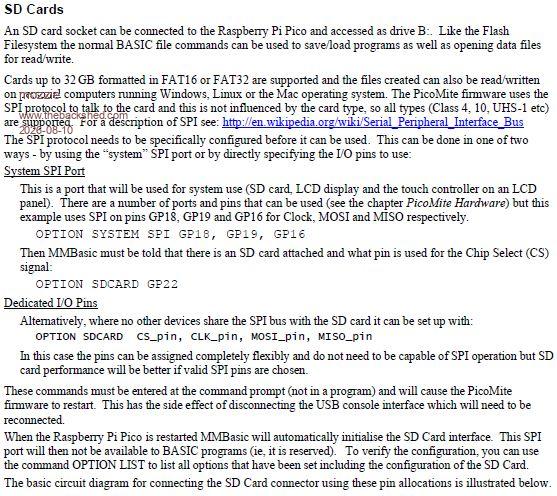

System SPI Bus
The system SPI bus is a dedicated SPI channel which is used by many LCD panels, all touch controllers and also to communicate with a SD Card.

However with HDMI + resistive touch screens now in use it could be useful for sharing with the SD card.
Edited 2026-08-10 10:57 by phil99

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 423

Posted: 01:30am 10 Aug 2026

Copy link to clipboard

Print this post

G'day,
Phil, you hit the nail on the head

looking back through all the saved option lists for HDMIUSB versions and non are showing OPTION SYSTEM SPI, my head says otherwise but in the light of a new day I am mistaken. Sadly we cannot have SPI touch with HDMI so SYSTEM SPI is not really relevant.

Also thanks for the Ascii table, very easy to use

Peter, my apologies, another red herring

Perhaps a note in a future version of the manual would be useful to avoid confusion.

Regards, Lyle.

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 3360

Posted: 03:41am 10 Aug 2026

Copy link to clipboard

Print this post

Quote Ascii table, very easy to use

Homa has written a MMBasic program that produces a much neater version than my untidy Paint effort.
Follow with SAVE IMAGE for a permanent copy.
Font #1

Font #4

Edited 2026-08-10 22:46 by phil99

okwatts
Regular Member

Joined: 27/09/2022
Location: Canada
Posts: 81

Posted: 03:23pm 10 Aug 2026

Copy link to clipboard

Print this post

I am not sure where to post this but I have been following Peter's updates on MMBasic and also the Fuzix thread where you can compile some MMBasic programs.
I usuallly try an ASCII Mandelbrot program to checkout any changes in performance on the various versions of MMBasic. Since Peter introduced Micropython and Fuzix I have added a Sudoku solver in MMBasic similar to that which Peter demo'ed in Micropython(I used Gemma 4 locally) that I used for benchmarking.
In the included zip I have the 2 basic programs and a sample puzzle that I ran against a number of different boards that I have (RP2040 and RP2350(AorB)). In general each successive version is faster due to firmware changes or hardware(RP2040 to RP2350).
As noted in the PDF file there is one test for a Picomite RP2040 V1.0 that goes against this trend. I am not sure why there is this anomaly but I am posting the files for general information.
The huge increase in performance for Fuzix is quite apparent. Because of the different clock speeds on the various boards/versions I "normalized" these to 200 MHz.
Benchtests.zip

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 423

Posted: 04:33pm 12 Aug 2026

Copy link to clipboard

Print this post

G'day,
Can anyone please confirm that I am not just having one of those days

Pico Computer 1 & Pico Computer 3 both work fine with V6.03.00 but when upgraded to V6.03.01 I get the following when trying to run a file or exit file manager:

*** FAULT PC=100B2030 LR=100AB7A3 SP=200806A0 CFSR=00000000 HFSR=80000000

> option list
PicoMiteHDMI MMBasic USB RP2350A Edition V6.03.01
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION FLASH SIZE 4194304
OPTION COLOURCODE ON
OPTION KEYBOARD US
OPTION RESOLUTION 640x480 @ 315000KHz
>

This does seem to be confined to the HDMIUSB variant. The HDMI output also loses sync when changing drives.
Tried downloading the file twice from GitHub and checked the CRC SHA and they match.
Neither of these boards are fitted with PSRAM, however I would hope the basic functionality can work without it.

Regards, Lyle.

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11779

Posted: 04:44pm 12 Aug 2026

Copy link to clipboard

Print this post

Replicated, seems to be just the HDMIUSB build, HDMI is fine as is HDMIWEB and HDMIUSB launches OK from the command prompt so looks like a resource issue - will inverstigate
Edited 2026-08-13 02:58 by matherp

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 423

Posted: 04:57pm 12 Aug 2026

Copy link to clipboard

Print this post

G'day Peter,
Thanks for the reply, tried option reset as suggested but same outcome as above.

Had also tried different resolutions and with / without SDCard installed but no change.

Error message is only printed to console.

Regards, Lyle.

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 423

Posted: 05:12pm 12 Aug 2026

Copy link to clipboard

Print this post

Some further info:
May not be PSRAM related, just tried on PICO-2350-DIL with PSRAM, same result.

*** FAULT PC=100B2030 LR=100AB7A3 SP=200806A0 CFSR=00000000 HFSR=80000000

> option list
PicoMiteHDMI MMBasic USB RP2350B Edition V6.03.01
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION FLASH SIZE 16777216
OPTION COLOURCODE ON
OPTION KEYBOARD US
OPTION PICO OFF
OPTION RESOLUTION 640x480 @ 315000KHz
OPTION PSRAM PIN GP0
>

Regards, Lyle.

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11779

Posted: 05:18pm 12 Aug 2026

Copy link to clipboard

Print this post

Try reloading from github - should be fixed now

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 423

Posted: 05:37pm 12 Aug 2026

Copy link to clipboard

Print this post

Peter,
Happy to report normal service has resumed

Thanks again for all you do

Regards, Lyle.

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 423

Posted: 08:41am 15 Aug 2026

Copy link to clipboard

Print this post

G'day,
Once again I seem to be in trouble.

This may be confined to HDMI builds (VGA?) with no PSRAM fitted?

Trying to play WAV files (MP3 is OK) from the File Manager causes either a full reset (all options reset) or the system to lock up until a reset.
WAV files are 44.1ksps stereo.
Playing same file from prompt is OK.

Using a Pico2 and PWM audio (Pico Computer 1) it starts to play at 1/2 speed and then:
*** FAULT PC=10025A84 LR=200083C3 SP=2007E650 CFSR=00040000 HFSR=40000000
also:
*** PANIC ***

> option list
PicoMiteHDMI MMBasic USB RP2350A Edition V6.03.01
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION SYSTEM I2C GP20,GP21
OPTION FLASH SIZE 4194304
OPTION COLOURCODE ON
OPTION KEYBOARD US
OPTION RESOLUTION 640x480 @ 315000KHz
OPTION SDCARD GP22, GP26, GP27, GP28
OPTION AUDIO GP10,GP11', ON PWM CHANNEL 5
OPTION RTC AUTO ENABLE
OPTION MODBUFF ENABLE 192
OPTION PLATFORM HDMIUSB
>

Using Pico Computer 3:
*** FAULT PC=10025A80 LR=200083C3 SP=2007E650 CFSR=00040000 HFSR=40000000 (most common)
also:
*** FAULT PC=10025BFC LR=00000001 SP=2007E648 CFSR=00020000 HFSR=40000000
*** FAULT PC=100AAEE8 LR=100AAEE3 SP=200733A0 CFSR=00008200 HFSR=40000000
*** FAULT PC=20008306 LR=20008817 SP=2007E5D0 CFSR=00008200 HFSR=40000000

On RP2350B standard it all works fine:

> option list
PicoMite MMBasic RP2350B V6.03.01
OPTION SYSTEM I2C GP20,GP21
OPTION FLASH SIZE 16777216
OPTION COLOURCODE ON
OPTION PICO OFF
OPTION CPUSPEED (KHz) 200000
OPTION SDCARD GP33, GP30, GP31, GP28
OPTION AUDIO I2S GP10,GP22', ON PWM CHANNEL 11
OPTION RTC AUTO ENABLE
OPTION COUNT GP34,GP35,GP36,GP37
OPTION MODBUFF ENABLE 512
OPTION PLATFORM PICO COMPUTER 3
OPTION HEARTBEAT PIN GP25
>

At one point deleting .fm from the A: drive made a difference but I cannot replicate now.

Not a problem if this is not possible but having the PicoMite reset all options is a bit of a PITA

Regards, Lyle.

Edit: I normally disable the MODBUFF when setting up as I don't play games, not sure if this makes any difference.
Edited 2026-08-15 18:46 by mozzie

Bryan1

Guru

Joined: 22/02/2006
Location: Australia
Posts: 2225

Posted: 09:08am 15 Aug 2026

Copy link to clipboard

Print this post

Don't worry Lyle as I am having plenty of fun road testing this micro-python out MP.3's won't play and my music folder still refuse to open so left that behind.

Now out of the 5 boards I have here 3 are penciled in for the car club, one for my sisters son and the last one will get MMBasic on so I can get around to doing the CNC where my CNC board can talk thru MMBasic to a micro-pyhon interface using the last board.

Now with my 3D Model Editor will get Claude to set up gcode instead of STL and that is next weeks project after I sell my idea of club.py to the car club.

Although this mico-python has been fun I am soon finding out just how limited it really is. Getting Claude to communicate with the boards just won't work although he can get in so I am upto 50 swaps of the sdcards a day.

Now I did ask the AI on core electronics the next stepup board where 2 sdcards can be used so the sdcard with the firmware can be protected and a second one can be used and the PI4 was suggested for $85.

Now Claude did say the PI4 is a full linux/python build and putting club.py will be a big job where I said well thats your job

Tomorrow I'm picking up the 4 3D printed cases and my foot is going down until I buy a #D printer Sam your getting the work so a one day turn around please.

I do guess this younger age work on a different time line to us oldies so time to get them put in line when I send a STL get it printed.

Regards Bryan

v.lenzer

Senior Member

Joined: 04/05/2024
Location: Germany
Posts: 146

Posted: 06:48pm 15 Aug 2026

Copy link to clipboard

Print this post

Hi Peter!
Since the new firmware supports the OV5640 camera, I tried connecting it to the WeAct-RP2350B. Unfortunately, without success. The following error message appears:

[39] Camera open ov5640 gp40,gp41,gp42,gp43,gp44,daten
Error : I2C failure

"daten" stands for the value "GP16". I connected the data lines D0–D7 to GP16–GP23. The I2C interface uses GP38 and GP39 (both are from I2C2. Is this the reason?).

The OV2640 works perfectly with these settings—though only at BMP resolution, as I had I2C issues there too. I am also testing the OV5640 using only BMP resolution.
I have also tried various CPU clock speeds without success.

Before I start dismantling my setup to try different GPIOs for the I2C interface, I would like to know which pins (GPs) you used to connect your camera—specifically, which GPs you used for the I2C interface.

Thanks in advance for any tips!

Pullups for SDA an SCL: 2K7 Ohm

'> option list
'PicoMite MMBasic RP2350B V6.03.01
'OPTION SYSTEM SPI GP6,GP3,GP4
'OPTION SYSTEM I2C GP38,GP39
'OPTION AUTORUN ON
'OPTION FLASH SIZE 16777216
'OPTION COLOURCODE ON
'OPTION PICO OFF
'OPTION CPUSPEED (KHz) 200000
'OPTION LCDPANEL ILI9341, LANDSCAPE,GP7,GP2,GP5
'OPTION TOUCH GP14,GP15
'GUI CALIBRATE 0, 155, 169, 901, 640
'OPTION SDCARD GP8
'OPTION PSRAM PIN GP47

'GP16 21 DIN: Reserved for function
'GP17 22 DIN: Reserved for function
'GP18 24 DIN: Reserved for function
'GP19 25 DIN: Reserved for function
'GP20 26 DIN: Reserved for function
'GP21 27 DIN: Reserved for function
'GP22 29 DIN: Reserved for function
'GP23 41 DIN: Reserved for function
'GP38 53 Boot Reserved: SYSTEM I2C SDA
'GP39 54 Boot Reserved: SYSTEM I2C SCL
'GP40 55 DOUT: Reserved for function
'GP41 56 DIN: Reserved for function
'GP42 57 DIN: Reserved for function
'GP43 58 DIN: Reserved for function
'GP44 59 DOUT: Reserved for function
Edited 2026-08-16 05:06 by v.lenzer

Best wishes! Joachim

lizby
Guru

Joined: 17/05/2016
Location: United States
Posts: 3868

Posted: 08:40pm 15 Aug 2026

Copy link to clipboard

Print this post

How is daten specified? For example, daten=MM.Info(pinno "GP16")

> ?MM.Info(pinno "gp16")
21

~
Edited 2026-08-16 09:42 by lizby

PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on FOTS

mozzie
Guru

Joined: 15/06/2020
Location: Australia
Posts: 423

Posted: 07:57am 16 Aug 2026

Copy link to clipboard

Print this post

G'day,
As usual this was found by mistake, hit enter on the WAV file and crashed the system

the fact that it resets all options is really the problem.

If WAV files cannot be played from FM then thats ok, but a more elegant exit would be preferred. Is a lack of PSRAM a contributing factor?

Bryan,
Have been following your other projects with interest, you and Claude are making headway in all directions. I plan to get back to the CNC project when time allows but it will all be written in MMBasic, I find Python a PITA.
However, we should continue this on other threads rather than clutter this one.

Regards, Lyle.

v.lenzer

Senior Member

Joined: 04/05/2024
Location: Germany
Posts: 146

Posted: 07:59am 16 Aug 2026

Copy link to clipboard

Print this post

Hi lizby!
"Daten" is defined as a string and contains the value "GP16".

I ran some more tests today, and it finally worked!!!!!!!!!!!!

The OV2640 camera worked even with a 30 cm ribbon cable, but the OV5640 didn't. I’ve now shortened the connection length to 3 cm, and the OV5640 is working too. It would be great if I could use the higher image resolution as well, but I still need to experiment with that.

PS: With the short cable connection, I can achieve VGA and XGA resolutions. However, SXGA triggers the following error:
[33] Camera change imag%(),ch' initialise the change image
Error : Camera timeout - no HREF after frame start

That’s not a problem, though; this resolution is sufficient for my purposes. That said, I do notice a significant difference in quality between the OV2640 and the OV5640.
Edited 2026-08-16 18:44 by v.lenzer

Best wishes! Joachim

lizby
Guru

Joined: 17/05/2016
Location: United States
Posts: 3868

Posted: 01:05pm 16 Aug 2026

Copy link to clipboard

Print this post

v.lenzer said I ran some more tests today, and it finally worked!!!!!!!!!!!!

Great. What syntax worked?

Quote "Daten" is defined as a string and contains the value "GP16".

I don't think that will work as you had written it. My understanding is that gp16 in a command will be understood properly, but a variable like daten is resolved at runtime, so the MM.Info syntax I provided is what will give you the proper value for a pin number which is resolved at runtime.

(I may not have the correct terminology with "resolved at runtime".)

PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on FOTS

v.lenzer

Senior Member

Joined: 04/05/2024
Location: Germany
Posts: 146

Posted: 08:54am 17 Aug 2026

Copy link to clipboard

Print this post

Hi lizby!

I’m no MMBasic expert; I tend to experiment rather than rely on certain knowledge. In this case, I came up with this solution:

dim led as string
dim daten as string

led="GP25"
daten="GP16"

setpin led,dout
pin(led)=0

If Instr(MM.DEVICE$,"HDMI") Then Mode 4
Drive "b:"
Camera open ov5640 gp40,gp41,gp42,gp43,gp44,daten

And it works! I did this because I was experimenting with different GPIOs, and it was easier to redefine the variables right at the start of the source code than to hunt down the specific lines.

Best wishes! Joachim

ebbandflow

Regular Member

Joined: 31/08/2023
Location: United States
Posts: 59

Posted: 11:03pm 17 Aug 2026

Copy link to clipboard

Print this post

Peter,

*edit - Please disregard the below report. What I had read as a file size error was in fact an error for a string that was accidentally assigned > 255 chars.

*

I have a large program that I recently added to when I noticed an issue.

Although it's less than the manual's 300Kb max. program size for this firmware/chip, when attempting to load the program I get an out of memory error:

> option list
PicoMite MMBasic RP2350B V6.03.01
OPTION SYSTEM I2C GP18,GP19
OPTION FLASH SIZE 16777216
OPTION LIBRARY_FLASH_SIZE 4B000
OPTION COLOURCODE ON
OPTION PICO OFF
OPTION CPUSPEED (KHz) 200000
OPTION DISPLAY 40, 120
OPTION SDCARD GP22, GP26, GP27, GP28
OPTION PSRAM PIN GP47
>
> files "test*"
B:/
18:43 17-08-2026 167168 test.bas
0 directories, 1 file
>
> load "test.bas"
Error : Not enough memory

Edited 2026-08-18 11:47 by ebbandflow

Page 3 of 3

Print this page

To reply to this topic, you need to log in.
